Your Polycarbonate Awning Manufacturer in China
Zoycen polycarbonate awnings are used to provide shade and shelter for buildings or open-air sites. It consists of PC panels, aluminum alloy brackets, and matched waterproof seals. The high-transmittance panels protect buildings and users while retaining natural light with great visual appeal. Its polymer material cushions raindrops to cut rain noise.

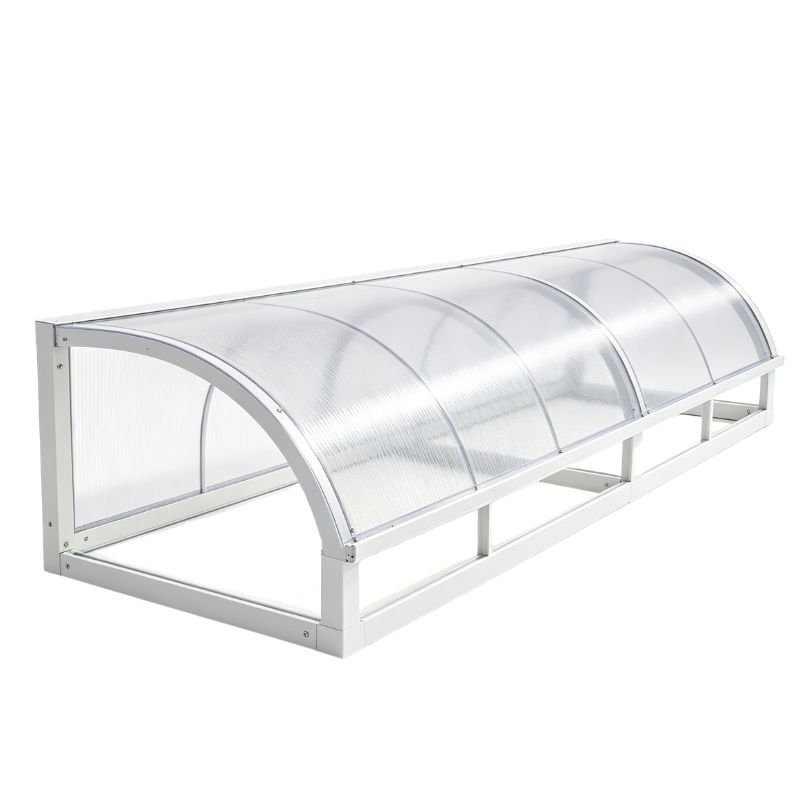

Zoycen polycarbonate awnings use CNC finishing technology to perform CNC cutting, drilling, bending, polishing, hot bending, and shaping of PC boards and aluminum profiles. The tolerances are controlled within ±0.5 mm, and the specifications of each batch are unified. You don’t have to worry about the wrong product. Our standard modular design features unified PC panels and aluminum brackets for easy field assembly. We supply complete installation accessories so no secondary processing is required, and we also offer detailed installation manuals and operation videos for your reference.

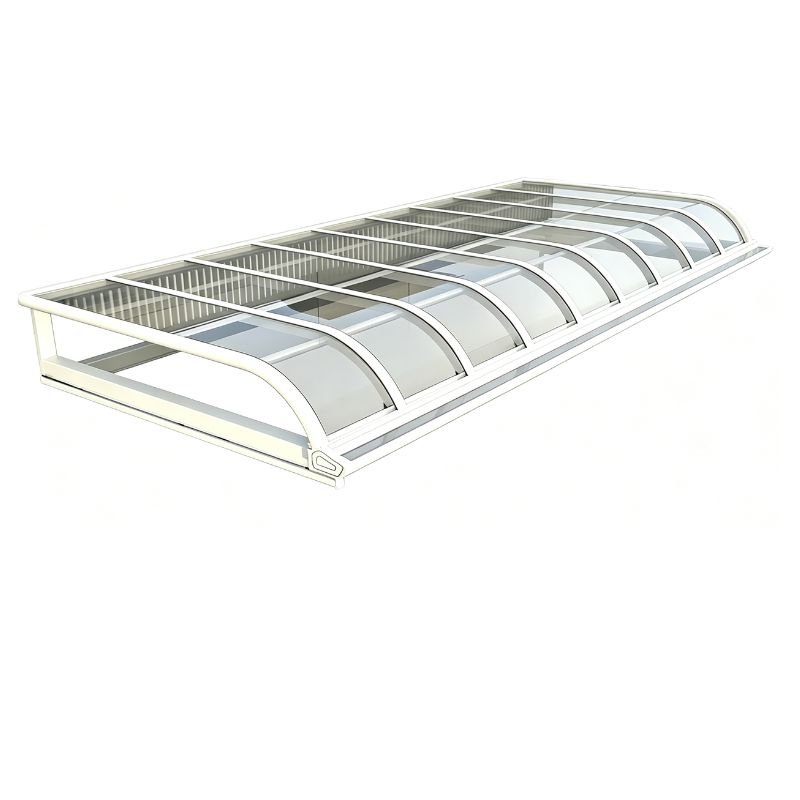

100% solid, smooth surface, uniform seamless internal density, excellent light transmission and impact resistance. Suitable for windows, roofs, porches, and other places that need light.

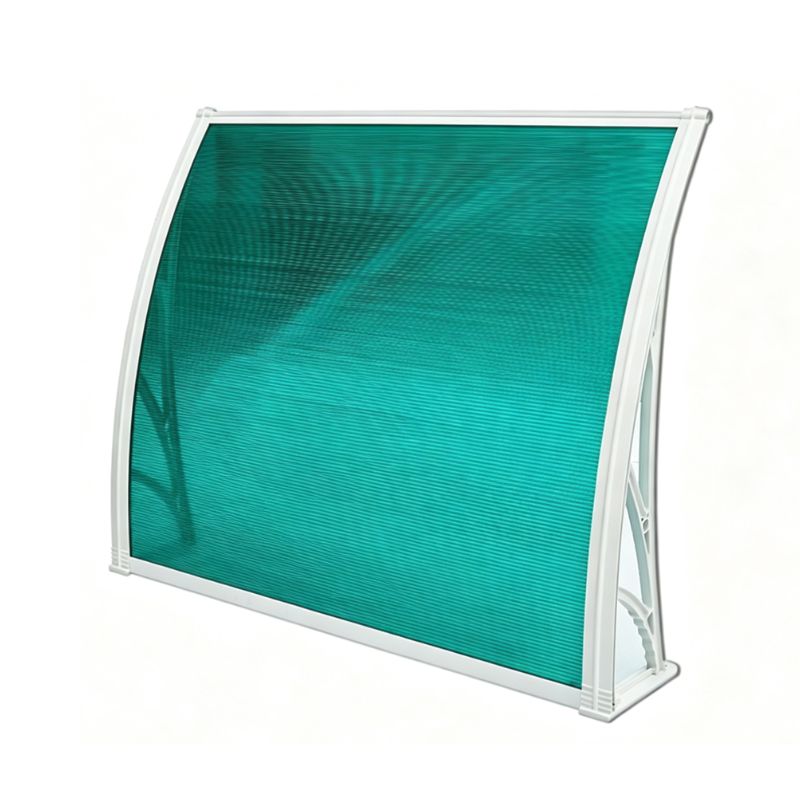

It is composed of multiple layers of PC boards with gaps in the middle. It is translucent and has soft diffuse reflection to prevent glare. It has a good thermal insulation effect and is suitable for greenhouses, gymnasium roofs, etc.

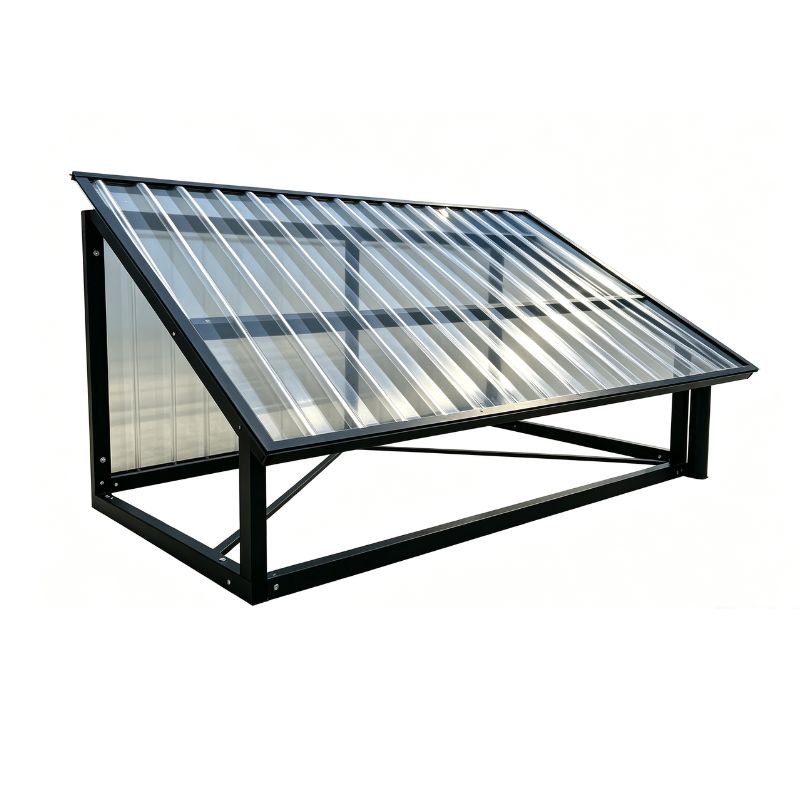

Single-layer solid PC board is heat-molded into corrugated rows; the transparency is controllable, and there is a strong weighing force, which is suitable for factory roofs, warehouses, and buildings with a sense of design
We can provide you with the appropriate style according to your construction project needs, size, thickness, color, and polycarbonate awning of different materials to ensure consistent size

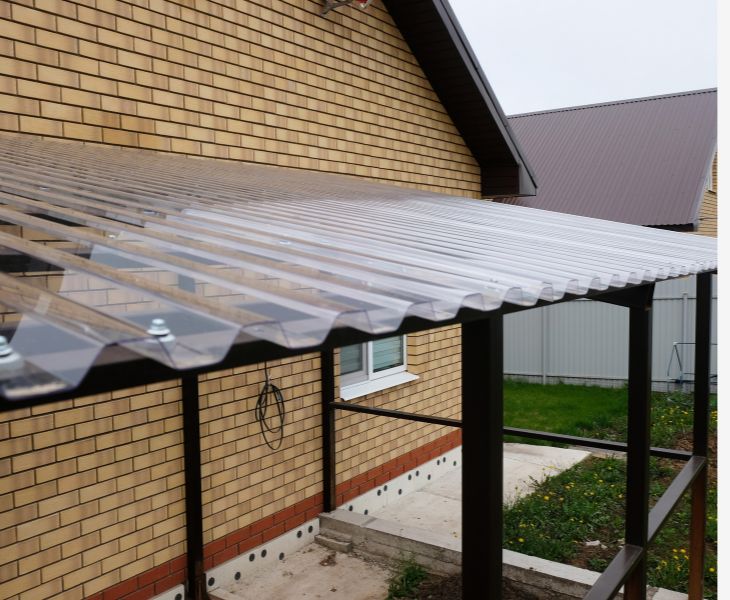

Waterproof & Drainage System
Our polycarbonate awning adopts an integrated hidden drainage trough structure with a slight outward inclination of 3°-5°. Rainwater naturally flows down the slope to the U-shaped polycarbonate awning with a gutter at the front end of the canopy, and then flows into the hollow channel and is discharged to the ground along the inside of the hollow bracket. This solves the problem of rain splashing everywhere. Our flexible PC panels cushion falling objects and cut noise, improving the texture of your project and making the environment quieter.

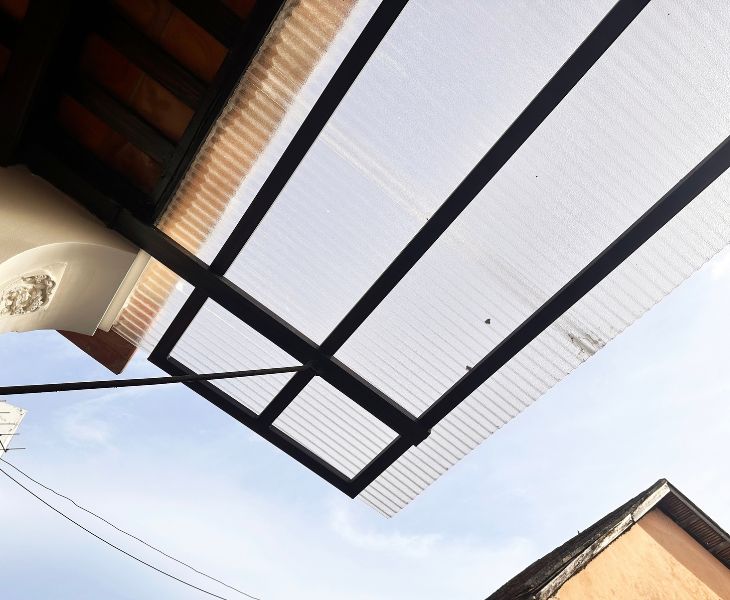

UV Protection & Structural Durability System
It effectively avoids common long-term defects, including PC yellowing, deformation, light loss, cracking, water leakage, and bracket rust. We use coextrusion equipment to generate a coextruded UV-protection layer on the polycarbonate panel, which forms a high-density UV barrier layer on the surface with a protection level of 50 microns.
Long-term outdoor exposure will not turn yellow, maintaining the high light transmittance of your project. At the same time, the bracket is made of aircraft-grade aluminum, with powder sprayed on the outside to improve corrosion resistance and weather resistance. It will not rust after long-term use and will maintain stable load-bearing strength.

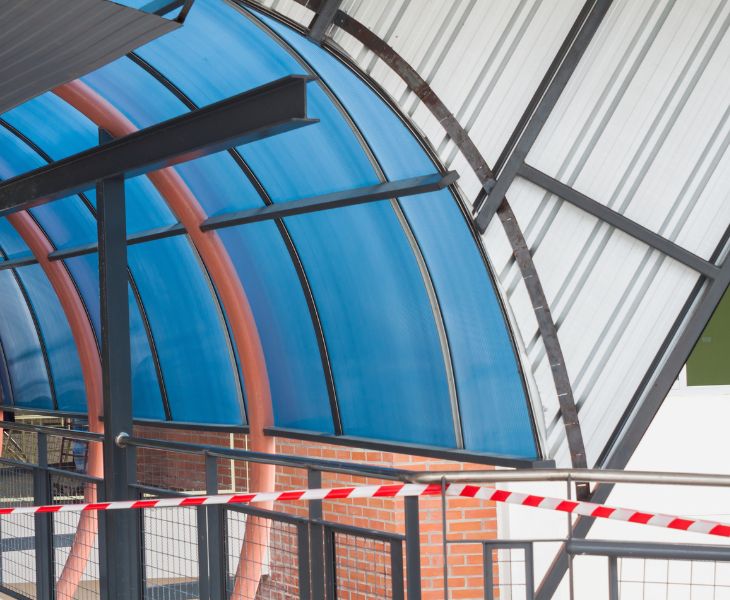

Long-Lasting Weatherproof Sealing System
We have been deeply engaged in this industry for many years, and we have addressed the problem of rubber strips easily aging and deforming, causing water leakage. Automotive-grade high-density EPDM sealing strips are now used, and special anti-aging agents and carbon black strengthening agents are deliberately added.
At the same time, it is placed inside the aluminum alloy structure to avoid direct sunlight, thereby greatly extending the service life of its seal. Under tight and uniform pressure, a sealing layer is formed between the polycarbonate awning and the wall, which can prevent rainwater from penetrating through the gaps in the wall. This will improve the overall unity of your building and reduce the maintenance costs of long-term water leakage.
Pure Raw Materials, Fast Delivery & Long Warranty

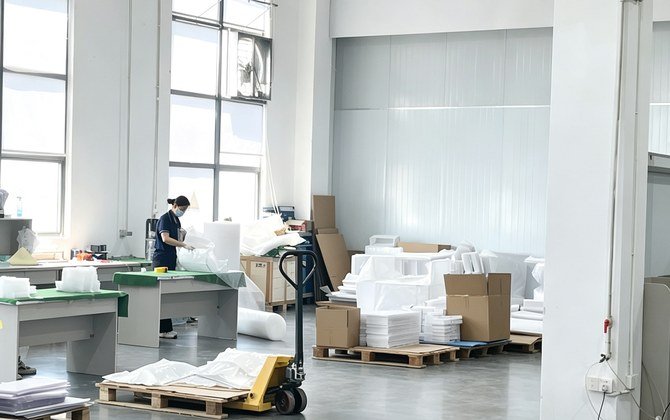

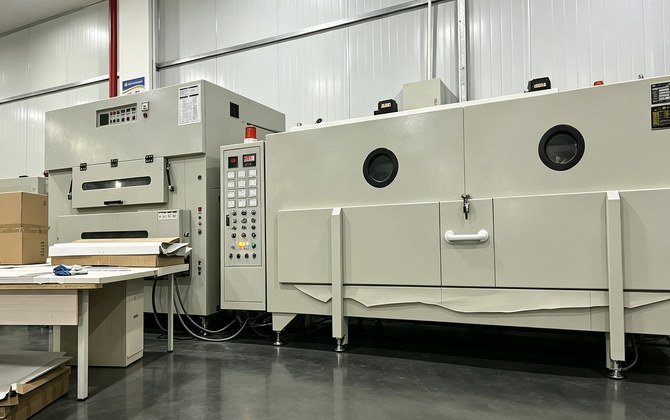

With an annual output of 20,000 tons, we adopt 100% pure virgin resin to guarantee stable raw material quality. We are equipped with multiple extrusion lines, which can flexibly customize parameters such as size, thickness, color, etc. In order to show sincerity and confidence in the quality of our products, we set a low MOQ and can also take large-volume orders.
We deliver fast quotations within several hours. General regular order: 3-7 days fast shipping; a customized professional packaging plan is provided to ensure safe transportation. With an exclusive 10-year warranty period, after-sales response is timely, and all kinds of problems you encounter are solved at any time.
Polycarbonate Awning Specifications
| Parameter | Specification | Standard / Compliance |
| Panel Material | 100% Virgin Covestro/Sabic Polycarbonate | RoHS, ISO 9001 |
| UV Protection | 50 μm Co-extruded UV Layer (Single/Double Sided) | 10-Year Anti-Yellowing Warranty |
| Light Transmission | 88% (Clear Solid) / 78% (Twin-wall Clear) | ASTM D1003 |
| Frame Material | Architectural Aluminum Alloy 6063-T5 | Wall Thickness: 2.0mm – 3.0mm |
| Frame Coating | AkzoNobel Powder Coated (60-80 μm) | 1000-Hour Salt Spray Passed |
| Wind Resistance | Up to 125 km/h (Category 12 Typhoon) | EN 13561 Class 4 |
| Load Capacity | 120 – 150 kg/m² | Structurally Safe Certified |
| Fire Rating | B-s1, d0 (Hard to Flammability) | EN 13501-1 / Class B1 |
| Hardware | Heavy-duty 304 Stainless Steel Screws | Rustproof Warranty |
Applications of Polycarbonate Awning

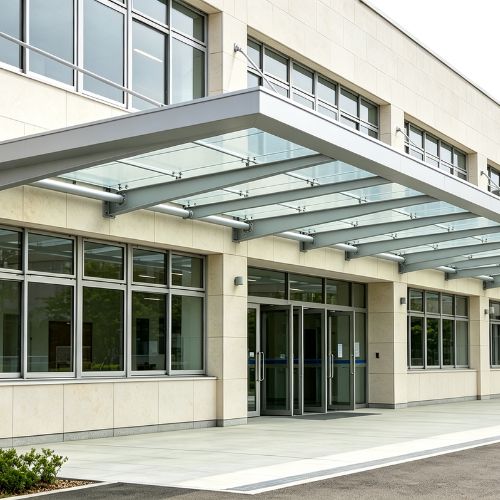

Our polycarbonate awning can be used for access and entrance to public places such as schools, hospitals, gymnasiums, etc. Its high impact resistance ensures safety for your projects, and its high light transmittance naturally keeps light in.

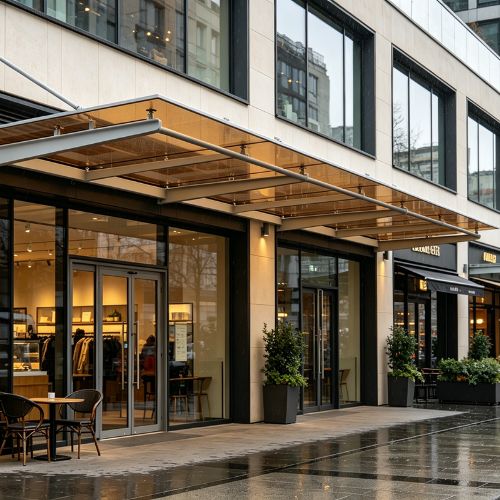

Zoycen polycarbonate awnings can be used for shopping mall entrances, office building entrances, hotel porches, etc. It features strong load-bearing performance, excellent wind, rain, and snow resistance, and thermal crack resistance, with customizable appearances.

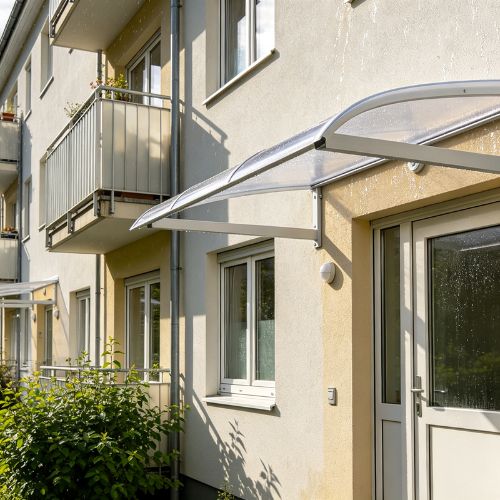

Zoycen polycarbonate awnings with concealed drainage troughs, centralized water diversion, and sealant strips for access to doors, windows, balconies, etc., you don’t have to worry about water leakage, and it meets lighting needs.
Our polycarbonate awning can withstand outdoor temperatures of -40 ℃~120℃ and withstand long-term exposure to the sun and severe cold. At the same time, our aluminum alloy bracket is high-strength, and combined with EPDM sealing strips, it makes the awning firmly fixed. It can bear up to 550 pounds and can also withstand a Category 12 typhoon.
Our PC awnings require only simple daily maintenance. Because the PC visor roof has a smooth surface, it only needs to be cleaned with a mild detergent and water. However, you need to be reminded that you should not use sharp and hard objects to clean, such as steel wool, hard object scratches, or strong acid and alkali corrosive cleaning agents. Otherwise, it will damage the surface, reduce transparency, destroy the UV layer, and easily leave dust, which will degrade performance.
Yes. Zoycen polycarbonate awning has professional fire and flame-retardant properties and has passed the EU EN13501-1 (Class B-s1, d0) and US UL94 (V-0/V-2) fire safety standards. It is not easy to ignite, will go out when you leave the fire, is not easy to spread, can control the fire, and will not release toxic smoke. You can use it with confidence.
Iron sunshades are prone to rust and are noisy; although glass sunshades have high light transmittance, they are fragile and can easily pose safety risks. The fabric canopy is the least durable, easily ages and fades, and is easily damaged and leaks; our PC awning has high toughness and strong impact resistance, is not easy to break, has good light transmission, and uses aviation-grade aluminum alloy brackets with special powder coating treatment, which are rust-proof and not easy to corrode, and have a long service life.
